Product Series | Specifications and models | Performance characteristics | Technical parameters | Suitable for well type and working condition |

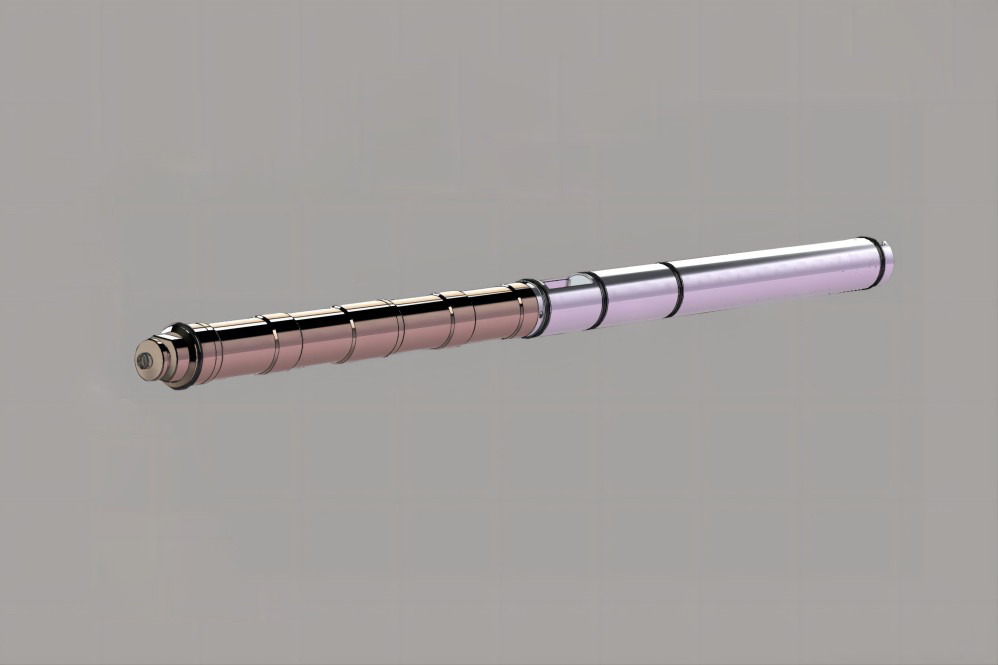

Series 9 | MDN-45SWP SINGLE/MULTI-POINT INCLINOMETER |
High precision Shock Simple operation Large information storage capacity High pressure High vibration
|
Diameter： 45mm Inclination accuracy：±0.1° Azimuth accuracy： ±1° Tool face accuracy： ±1° Temperature： -40~125℃ Maximum pressure：120Mpa Shock ： 1500g（0.5ms Random）
| Used for the initial (or first-pass) inclination measurement |
